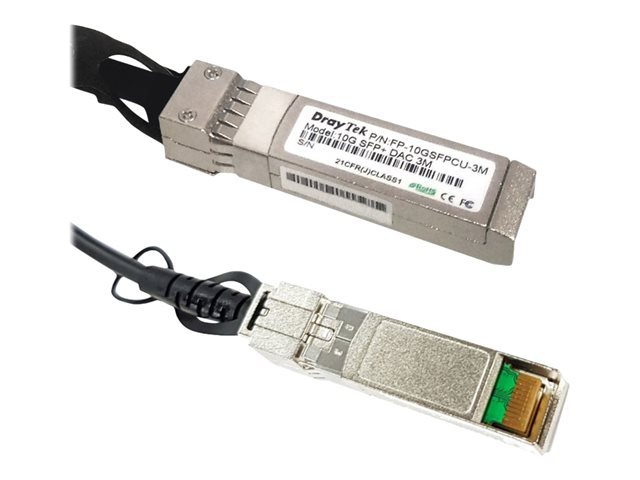

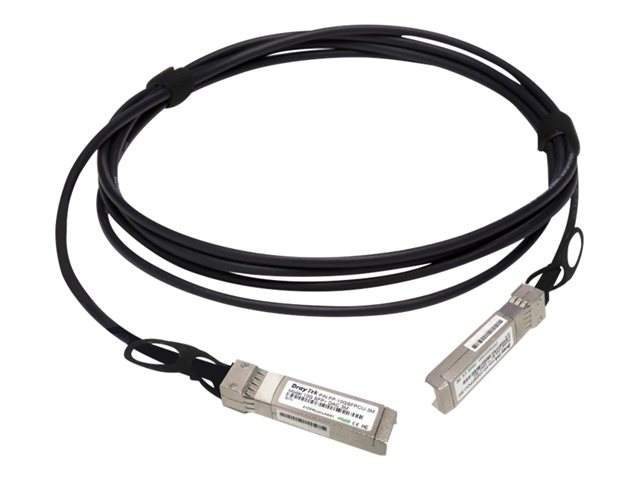

Draytek - 10GBase-CX direct attach cable - Front Draytek - 10GBase-CX direct attach cable - Close up Draytek - 10GBase-CX direct attach cable - Close up

Draytek - 10GBase-CX direct attach cable

SFP+ locking to SFP+ locking - 1 m - twinaxial
15 in stock
Manufacturer Draytek
Part number DCX101
  • £18.99 Excl VAT
  • £22.79 Incl VAT
Add to basket
  • Information
    • DrayTek DAC-CX10
    • SFP & SFP+ Direct Attach Cable
    • Self-Locking on insertion for reliable installation
    • Pull-Tab for easy removal
    • Ideal for high bandwidth applications (e.g. server to switch)

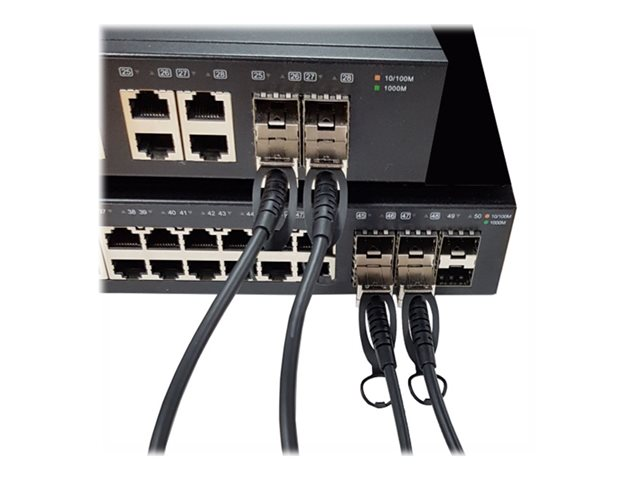

    The DAC-CX10 cable is a cost-effective interlink cable between switches, routers, servers and storage devices and supports speeds up to 10Gb/s. DrayTek DAC-CX10 SFP cables connect directly to the SFP module port of the devices, such as any DrayTek switch or router which has an SFP or SFP+ port. A "Direct Attach Cable" or "DAC" connects SFP module ports on two devices similarly to an RJ-45 network cable, instead of using SFP to optical fiber transceivers, or SFP to RJ-45 transceivers. This significantly simplifies the connection process and reduces cost, while still ensuring reliable operation. For instance, if both devices support 10 Gigabit transfer rates through SFP+, instead of using two SFP+ Fiber transceivers and optical fiber, simply connect the DAC-CX10-01M cable between the two for an up to 10Gb/s link. The DAC-CX10 is one piece - there are no removable RJ-45 or fiber cables to be concerned with. The DAC-CX10 supports up to 10Gb/s - limited according to the speed supported by the connected devices; for example if one device only supports 1Gb/s, that is the maximum link speed available. If you are connecting between two devices whose SFP ports support 10Gb/s, the bandwidth is significantly higher than if you were to use the regular RJ-45 Ethernet/CAT6 ports - such speed is particularly important in high volume applications such as server or storage device to switch/network. If both connected devices support 'port trunking' you can use two DAC-CX10 cables to increase bandwidth even further, but equally, even on a 1Gb/s SFP port, these cables can be useful to make use of all ports without tying up an RJ-45 port that you need for other purposes. The DAC-CX10 module locks securely into place when fitted into a switch to avoid unintended removal and removed by pulling the tab to unlock it from the SFP module slot.
  • Review
  • Specifications
  • Extended specifications
  • Downloadable files
