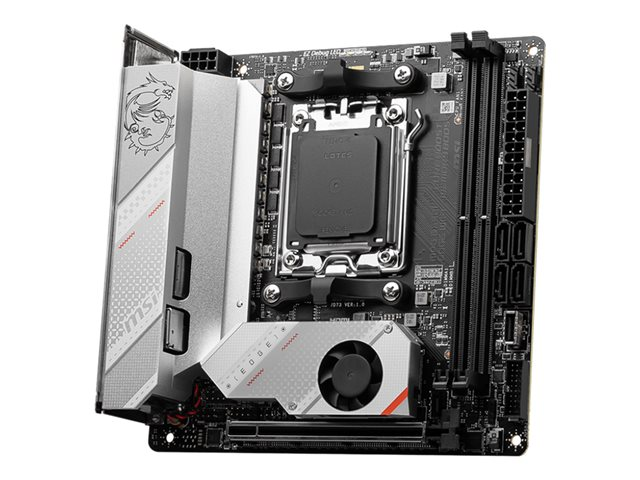

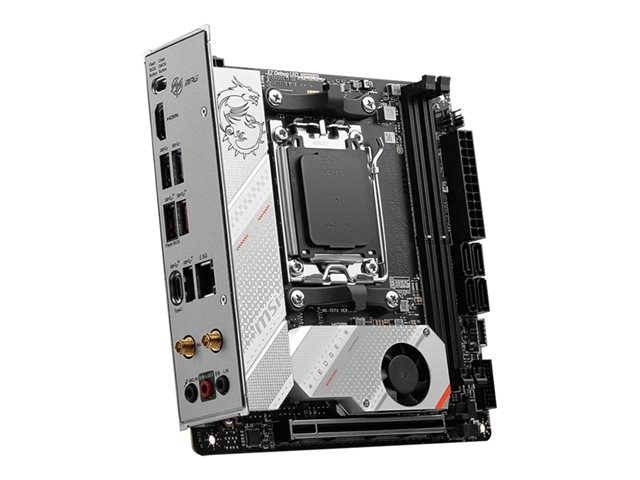

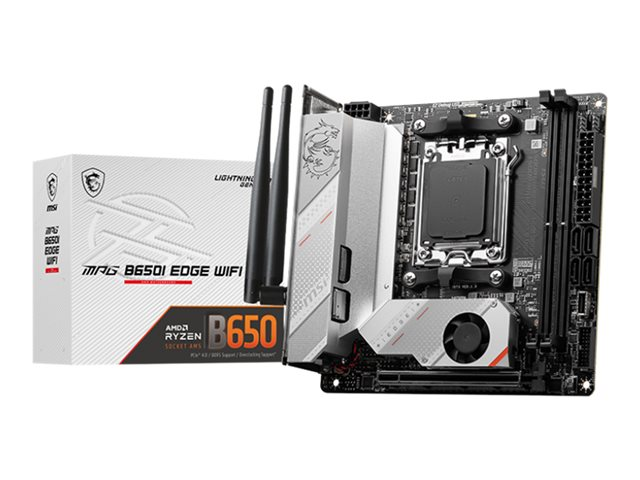

MSI MPG B650I EDGE WIFI
Motherboard - mini ITX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 2, USB-C 3.2 Gen2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
-
£207.99 Excl VAT
-
£249.59 Incl VAT
- Information
MPG B650I EDGE WIFI
Perform in Style
The MPG B650I EDGE WIFI is a gaming oriented Mini-ITX motherboard constructed around the latest AMD B650 chipset that delivers both performance and style.- Supports AMD Ryzen 7000 Processors (Zen 4, AM5)
- 8 phases direct CPU power with 80A SPS
- 1 x PCI-e 4.0 x16 slot
- 2 x DDR5 DIMMs with Memory Boost: Dual Channel (64GB Max. / 6600MHz OC)
- 2 x Lightning Gen4 M.2 slots with Shield Frozr (M2_1)
- 7.1 HD Audio with Audio Boost 5
- USB 3.2 Gen 2x2 Type-C (20Gbps)
- 2.5G LAN, AMD Wi-Fi 6E & Bluetooth 5.2
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today's performance limits.
Supports AMD Ryzen 7000 Processors
The MPG B650I EDGE WIFI motherboard supports AMD Ryzen 7000 processors.
Form Factor: Mini-ITX
Socket Type: AM5
Chipset: AMD B650Direct 8+2 Phase VRM with 80A Smart Power Stage
With exclusive Core Boost technology, the MPG B650I EDGE WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings:
1. Digital PWM IC
2. 8-Phase Direct CPU Power (80A)
3. 2-Phase SOC Power
4. 1-Phase MISC PowerIntegrated Cooling Features
VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.
PCB Cooling: Premium 10-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.1 x Fortified PCI-e 4.0 x16 Slot
MSI PCI Express Steel Armor slot is secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:- 1 x PCI-e 4.0/3.0 x16 slot (with Steel Armor)
2 x DDR5 Dual Channel (6600+ MHz OC)
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 6600 MHz, supports AMD EXPO.Gen4 M.2 Connectors
The MPG B650I EDGE WIFI motherboard features MSI's Gen4 M.2 slots:- 2 x Gen4 x4 64Gb/s slots
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.Wi-Fi 6E & Bluetooth 5.2

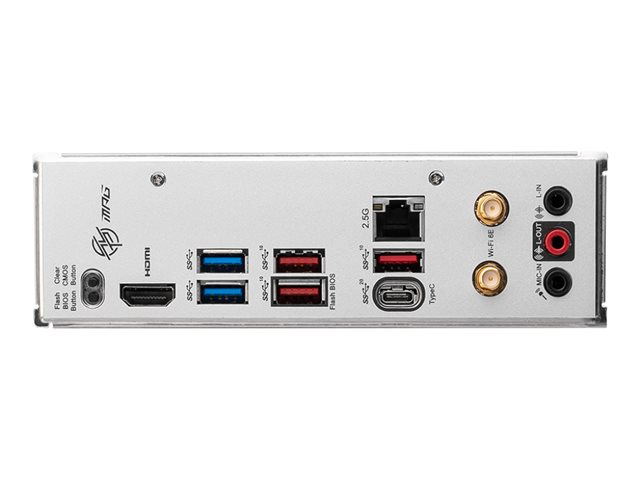

2.5G LAN: A Realtek RTL8125BG 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.
USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.
HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5.Product Comparison

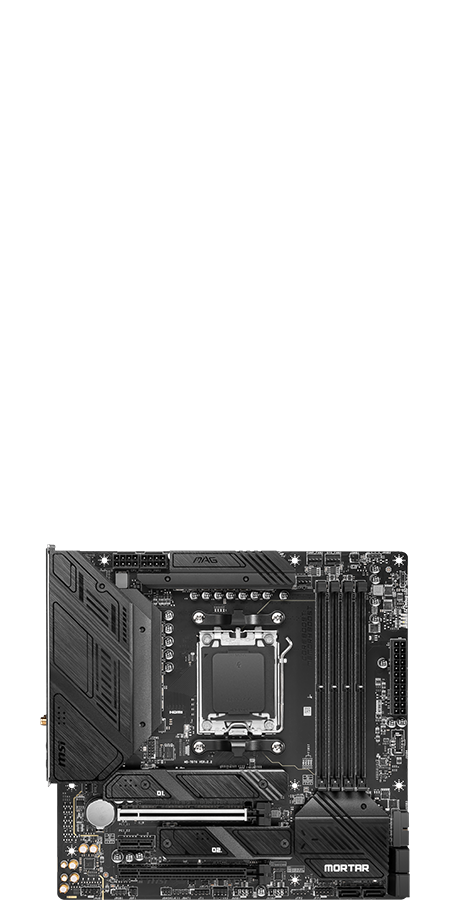

MAG B650M MORTAR WIFIMPG B650I EDGE WIFIMPG B650 EDGE WIFIPrice−−−MSI Gaming SeriesMAGMPGMPGForm FactorMicro-ATXMini-ITXATXVRM12 Duet Rail Power System / 80A SPS8 phases Direct CPU power / 80A SPS14 Duet Rail Power System / 80A SPSDIMM Slots4 x DDR5 (6400+MHz/OC)2 x DDR5 (6600+MHz/OC)4 x DDR5 (6600+MHz/OC)PCI-e x16 Slots2 x 4.01 x 4.02 x 4.0M.2 Slots2 x Gen4 x42 x Gen4 x41 x Gen5 x4 / 2 x Gen4 x4M.2 Shield FrozrSingle-sidedSingle-sidedSingle-sidedAudio8-Channel (7.1) USB High Performance Audio with Audio Boost 58-Channel (7.1) USB High Performance Audio with Audio Boost 58-Channel (7.1) USB High Performance Audio with Audio Boost 5LANRTL8125BG 2.5G LANRTL8125BG 2.5G LANRTL8125BG 2.5G LANWiFi & BluetoothAMD Wi-Fi 6E module, Bluetooth 5.2AMD Wi-Fi 6E module, Bluetooth 5.2AMD Wi-Fi 6E module, Bluetooth 5.2The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
Optimized for water cooling
Designed to support the more popular all-in-one and customized water-cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked 'keep-out-zone' allows for easy and safe installation and a perfect fit.
Deriect 8+2+1 CPU power design
Unleash and sustain the maximum performance with a strong VRM design built with a total of 8+2+1 phases. Combining 80A Smart Power Stage, the MPG B650I EDGE Wi-Fi is ready for high-end AM5 processors.
Optimized PCB solution
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
DDR5 memory with SMT slot
A huge step of DDR performance enhancement with the DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG B650I EDGE Wi-Fi is ready to deliver the world class memory performance.
Easy overclocking with expo profile
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.
High-bandwidth and low-latency network
MSI's premium network solution provides incredible data transfer speed for demanding users.
