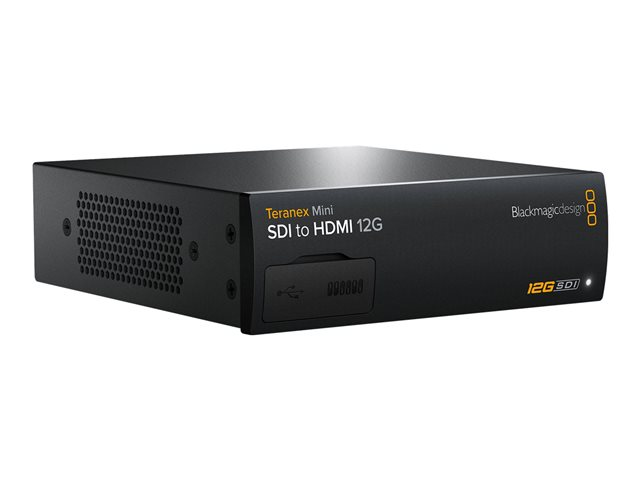

Blackmagic Teranex Mini

FEATURES

• Convert from 12G-SDI to HDMI
• Supports all video formats including SD HD 6G and 12G-SDI rates and includes down converter when working with Ultra HD as the HDMI monitor will select the best format it can support
• De-embed audio to balanced analog or AES/EBU formats and timecode output
• Perfect for using HDMI televisions as SDI broadcast monitors and for connecting to video projectors

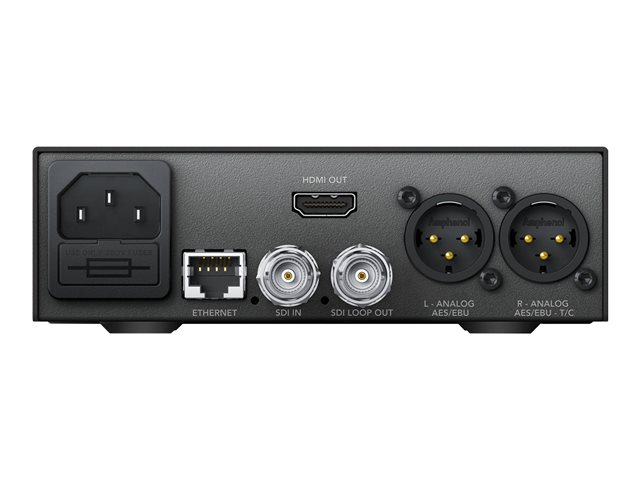

CONNECTIONS

• 1 x 12G-SDI SD/HD/2K/4K auto switching
• 1 x 12G-SDI loop output
• 1 x HDMI 2.0 type A connector with support for 2160p60
• 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output
• 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output
• Automatic switching between SD/HD/2K and 4K
• Updates and Configuration - USB or Ethernet
• Re-Clocking - Yes

WHAT'S IN THE BOX

Teranex Mini - SDI to HDMI 12G
Software SD Card
