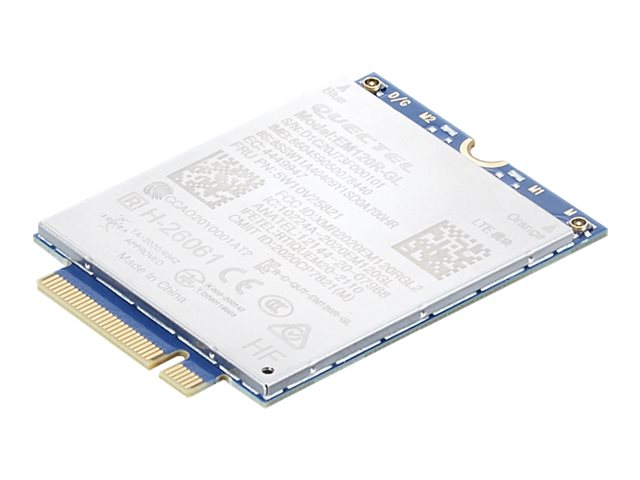

Quectel EM120R-GL - Wireless cellular modem - Right-angle

Quectel EM120R-GL - Wireless cellular modem

4G LTE Advanced - M.2 Card - 600 Mbps - for ThinkPad X1 Carbon Gen 9 20XW (WWAN upgradable), 20XX (WWAN upgradable)

1 in stock

Manufacturer Lenovo

Part number 4XC1D51445

£100.99 Excl VAT
£121.19 Incl VAT

Information
- Supports DFOTA
- Supports DTMF
- Supports MIMO
- USB 2.0 high-speed interface
- Multi-constellation GNSS receiver
EM120R-GL is an LTE-A category 12 module in an M.2 form factor designed in accordance with the 3GPP Release 14 specification which supports maximum downlink rates of 600 Mbps and uplink rates of 150 Mbps. EM120R-GL is designed for the global market and covers nearly all mainstream carriers worldwide. The module supports Qualcomm IZat location technology Gen9 (GPS, GLONASS, BeiDou and Galileo) and integrated GNSS greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability. A rich set of internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android/built-in eSIM (optional) allow the module to serve a wide range of applications such as industrial routers, home gateways, STB, consumer and industrial laptops, industrial PDAs, rugged tablet PCs, and digital signage.
