Plugable USB to RS-232 DB9 Serial Adapter - Right-angle Plugable USB to RS-232 DB9 Serial Adapter - Front

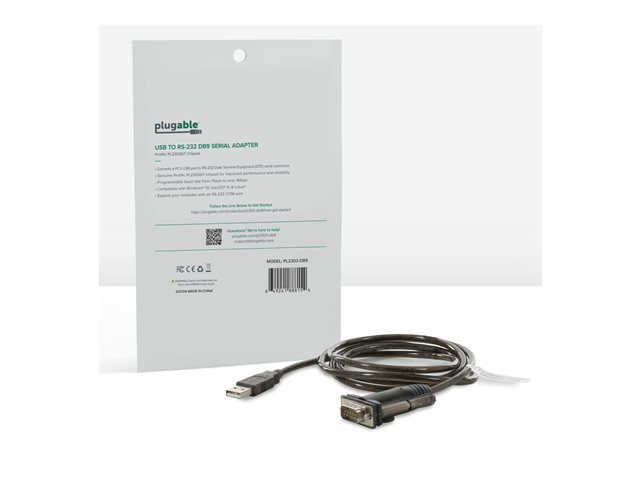

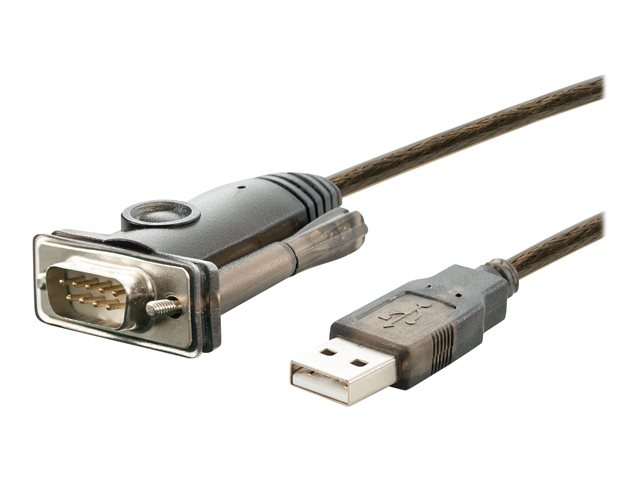

Plugable USB to RS-232 DB9 Serial Adapter

Serial adapter - USB - RS-232
Out of stock
Manufacturer Plugable
Part number PL2303-DB9
  • £15.99 Excl VAT
  • £19.19 Incl VAT
Add to basket
  • Information
    • Allows any PC to connect serial devices and programs that communicate through COM ports
    • PL-2303HX Rev D Chipset for high performance and compatibility across Windows, Mac, Linux, and other platforms
    • Plug and Play creation of a COM port
    • Powered by USB - no external power needed
    • Programmable baud rate from 75 bps to 12 Mbps
    • 256 byte inbound and outbound buffers
    • Typical speeds up to 230 Kbps
    • Full duplex transmitter and receiver
    • Modem RTS, CTS, DTR, DSR, DCD, and RI signals
    Features a Prolific PL-2303HX Rev D chipset for the best combination of performance and wide driver support. Drivers available for Windows 11, 10, 8.1, 8. 7, Vista, XP, macOS/Mac OS X 10.6 and later; open source drivers included in Linux kernel 2.4.31 and later. Windows 7 - 11 automatically detects and guides driver install without disk. Not compatible with ARM-based Windows (MS Surface). Works with devices with RS-232 serial ports like: other PCs with RS-232 ports, Bluetooth serial adapters, PDAs, GPS receivers, routers, firewalls, modems, printers, embedded character displays, scan tools, sonar units, embedded boards, etc. Works with software like: HyperTerminal, TeraTerm, WinDBG, all open source serial software on Linux, etc. The DB9 connector has fixed female side screw in connections. For connecting to a device that also has fixed female side connectors an inexpensive DB9 Female/Female Mini Gender Changer (Coupler) will be needed.
  • Review
  • Specifications
  • Extended specifications
  • Downloadable files
