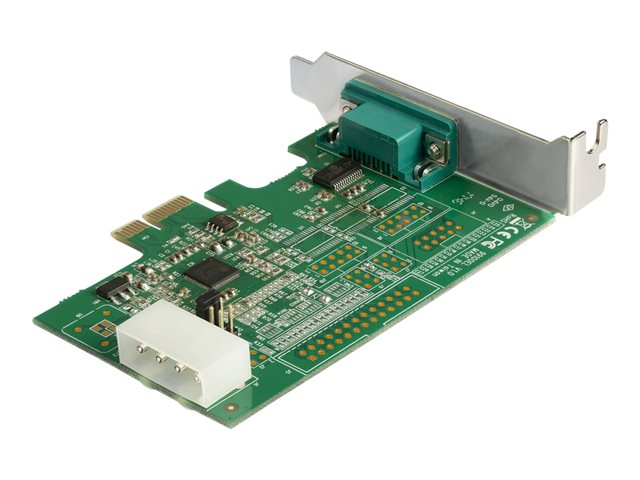

StarTech.com 1-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Serial DB9 COM Port, 16950 UART, Low Profile Expansion Card, Windows/macOS/Linux

Full/Low-Profile (PEX1S953LP) - serial adapter - PCIe - RS-232 x 1
100+ in stock
Manufacturer StarTech.com
Part number PEX1S953LP
  • £40.99 Excl VAT
  • £49.19 Incl VAT
Add to basket
  • Information
    • Compatible with PCI Express x1 bus interface
    • Full duplex mode for efficient data transmission
    • Supports a data transfer rate of 921.6 Kbps
    • Low-profile design ideal for compact cases
    • Adheres to compliance standards including FCC and RoHS

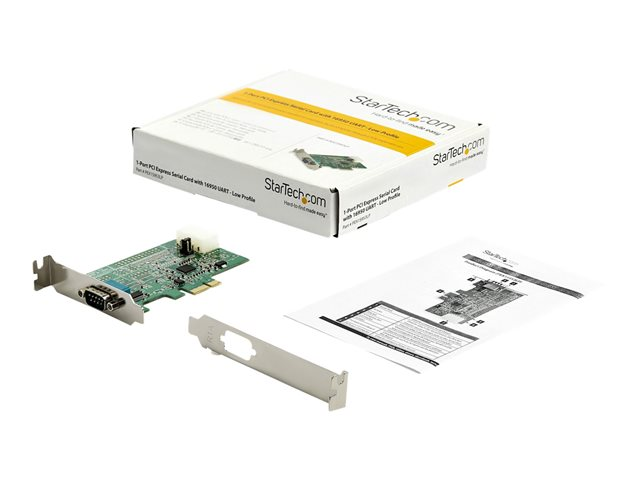

    This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps. With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor. This PCIe to serial adapter supports the following features: Compatible with industry standard 16950 UART; Supports max baud rate of up-to 921.4Kbps; Provides 5/12V power output on Pin 9 when external power is connected; 128-byte depth FIFO per transmitter and receiver; Supports 9, 8, 7, 6, 5 data bits; Asix AX99100 chipset; PCI Express 1.1 compliant.
