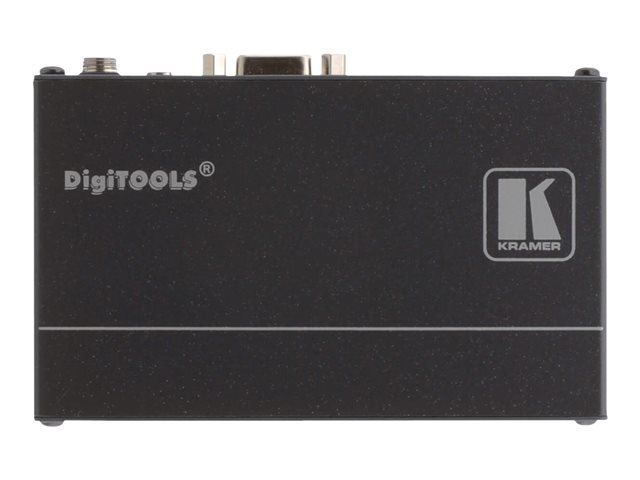

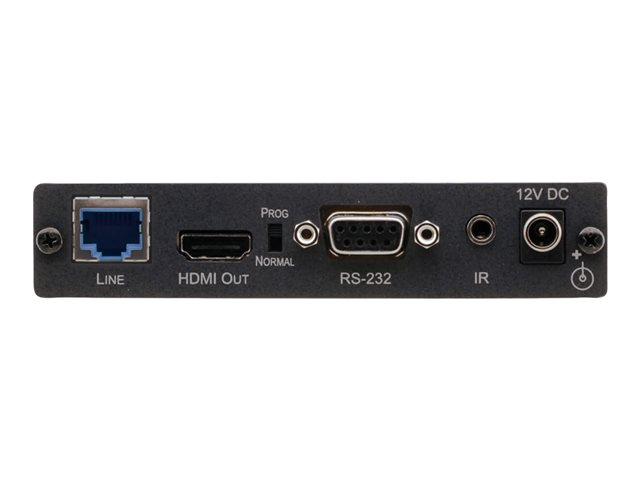

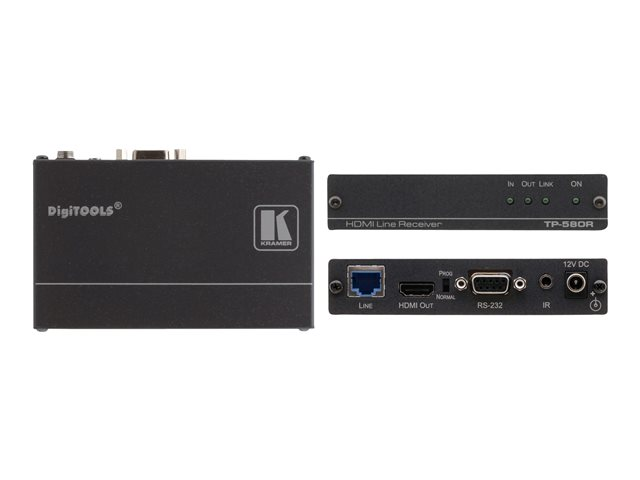

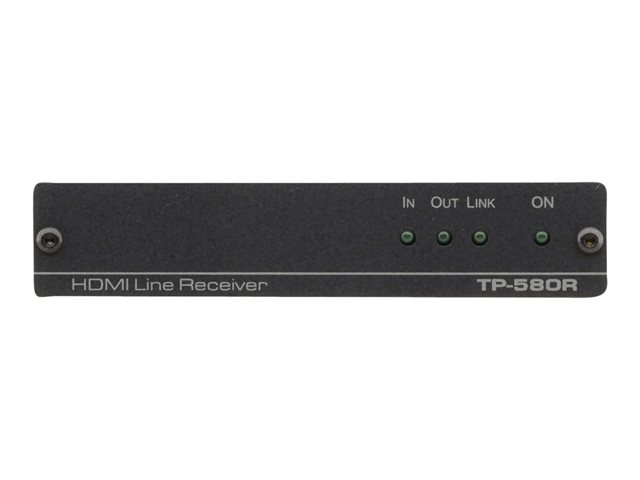

Kramer TP-580R - Video/audio/infrared/serial extender - Front Kramer TP-580R - Video/audio/infrared/serial extender - Multi-angle Kramer TP-580R - Video/audio/infrared/serial extender - Top Kramer TP-580R - Video/audio/infrared/serial extender - Back

Kramer TP-580R - Video/audio/infrared/serial extender

RS-232, HDMI, HDBaseT - up to 70 m - 1U
Out of stock
Manufacturer Kramer Electronics
Part number TP-580R
  • £138.99 Excl VAT
  • £166.79 Incl VAT
Add to basket

  • TP-580R is a high-performance, long-reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI, RS-232 and IR signals over twisted pair. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

    High-performance standard extender

    Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. TP-580R is a standard extender that can be connected to any market-available HDBaseT-compliant extension product.

    HDMI signal extension

    HDCP 2.2 compliant. Supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.

    I-EDIDPro Kramer Intelligent EDID Processing

    Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.

    Multi-channel audio extension

    Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.

    Bidirectional RS-232 extension

    Serial interface data flows in both directions, allowing data transmission and device control.

    Bidirectional infrared extension

    IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

    Cost-effective maintenance

    Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting, field-proven deployment.

    Easy installation

    Compact DigiTOOLS fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.
