Technology
|
|
Printing Method
|
PrecisionCore™ Micro TFP printhead
|
|
Nozzle Configuration
|
8,676 Nozzles Black, 8,676 Nozzles per Color
|
|
Minimum Droplet Size
|
3.5 pl
|
|
Ink Technology
|
DURABrite™ Pro
|
|
Category
|
Office Departmental
|
|
All-in-One Functions
|
Print, Scan, Copy
|
|
Print
|
|
First Page Out
|
Monochrome 4.9 Seconds, Colour 4.9 Seconds
|
|
Printing Speed ISO/IEC 24734
|
100 pages/min Monochrome, 100 pages/min Colour
|
|
Duplex Printing Speed ISO/IEC 24734
|
100 A4 Pages/min Monochrome, 100 A4 Pages/min Colour
|
|
Printing Speed ISO/IEC 24734 (A3)
|
54 pages/min Monochrome, 54 pages/min Colour
|
|
Printing Speed
|
100 pages/min Monochrome (plain paper 75 g/m²), 100 pages/min Colour (plain paper 75 g/m²)
|
|
Printing Resolution
|
600 x 2,400 DPI
|
|
Printing Volume
|
400,000 pages per month
|
|
Recommended Duty Cycle
|
8,000 - 100,000 pages per month
|
|

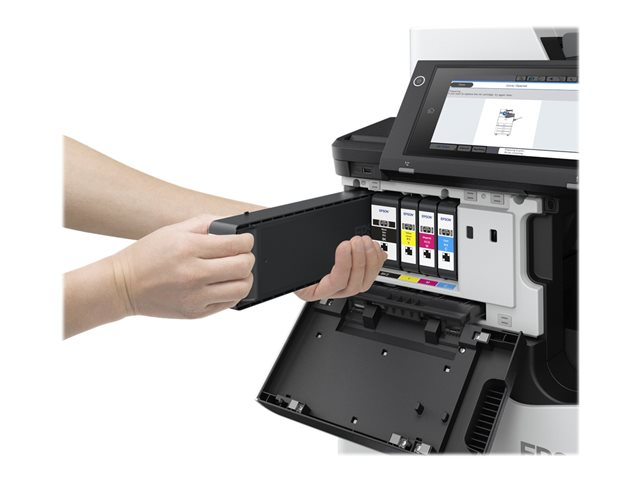

Colours
|
Black, Cyan, Yellow, Magenta
|
|

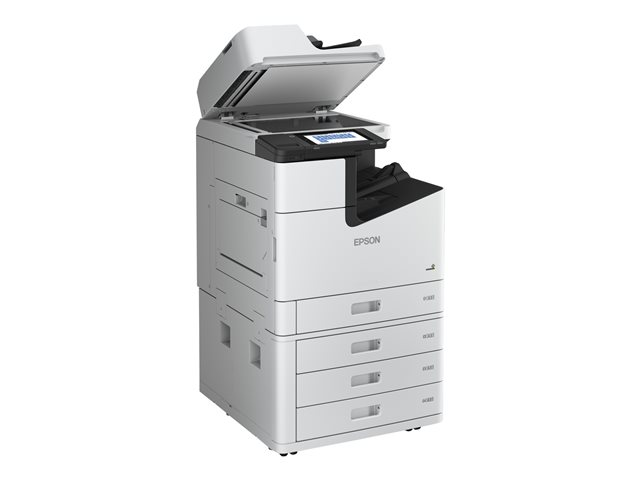

Scan
|
|
Double-sided scanning
|
Yes
|
|
Scanning Speed
|
60 ipm ( Monochrome, Single-sided, 300 dpi, ADF ); 110 ipm ( Monochrome, Double-sided, 300 dpi, ADF ); 60 ipm ( Colour, Single-sided, 300 dpi, ADF ); 110 ipm ( Colour, Double-sided, 300 dpi, ADF );
|
|
Optical Resolution
|
600 DPI x 600 DPI (Horizontal x Vertical)
|
|
Optical Resolution (ADF)
|
600 DPI x 600 DPI (Horizontal x Vertical)
|
|
Advanced document integration
|
Scan to Email, Scan to FTP, Scan to USB, Computer (Epson Document Capture Pro), USB Memory Device / Card
|
|
Output formats
|
BMP, JPEG, TIFF, multi-TIFF, PDF, PNG
|
|
Scanner type
|
Contact image sensor (CIS)
|
|
Fax
|
|
Type of fax
|
Walk-up black and white and colour fax capability
|
|
Fax Transmission Speed
|
Up to 33.6kbps / Approx. 3 sec/page
|
|
Error correction mode
|
CCITU/ITU Group3 fax with Error Correction Mode
|
|
Fax speed dials (max)
|
2,000 names and numbers
|
|
Page memory
|
Up to 550 pages/ 6MB (ITU-T No. 1 chart)
|
|
Fax Functions
|
PC Fax, Fax to E-mail, Memory Reception, Auto Redial, Fax to Folder, Address Book, Fax Preview, Polling Reception
|
|
Copy
|
|
Copy Speed
|
Up to 100 ipm Black, Up to 100 ipm Colour
*Simplex ADF 600 x 600 dpi (ISO/ IEC 24735)
|
|
Copy resolution (dpi)
|
600 x 1200
|
|
Reduction / Enlargement
|
25 % - 400 %
|
|
Maximum number of copies
|
9,999
|
|
Maximum Copy Size
|
A3
|
|
Connectivity
|
|
Network Printing Protocols
|
IPP, LDP, Port 9100, WSD
|
|
Network Management Protocols
|
SNMP, HTTP, DHCP, BOOTP, APIPA, DDNS, mDNS, SNTP, SLP, WSD, LLTD, Ping
|
|
Network Protocol
|
IPv4, IPv6
TCP/IPv4, TCP/IPv6, TCP, HTTP, HTTPS, IPv4, IPv6, IPSEC, SSL/TLS
|
|

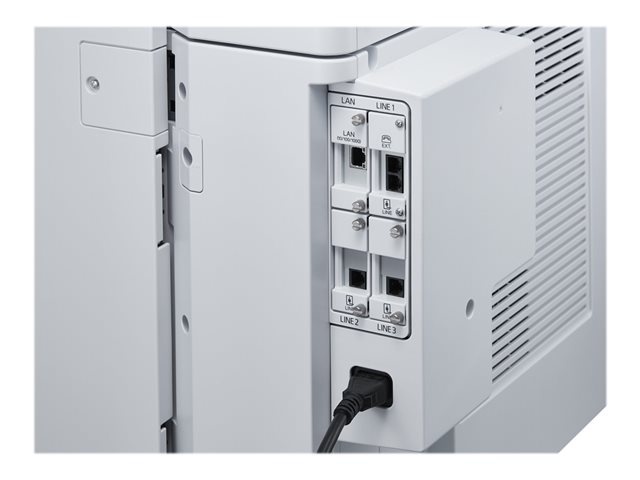

Interfaces
|
10 Base-T, Ethernet interface (100 Base-TX / 10 Base-T), Ethernet 1000, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN IEEE 802.11a/b/g/n, Wi-Fi Direct, USB 1.0-A, USB 2.0-A, USB 3.0 Type B
|
|
WLAN Security
|
WEP 64 Bit, WEP 128 Bit, WPA PSK (TKIP), WPA PSK (AES)
|
|
Paper / Media Handling
|
|
Paper Formats
|
A3 (29.7x42.0 cm), A4 (21.0x29.7 cm), Postcard, A3+, A5 (14.8x21.0 cm), A6 (10.5x14.8 cm), B4, B5, B6, C4 (Envelope), C5 (Envelope), C6 (Envelope), DL (Envelope), Executive, Letter, Legal, HLT, No. 10 (Envelope), User defined
|
|
Automatic Document Feed
|
150 pages
|
|
Compatible Paper Weight
|
60 g/m² - 350 g/m²
|
|
Duplex
|
Yes (A4/A3, plain paper)
|
|
Standard Paper input
|
2,350 Sheets Standard, 150 Sheets MP tray, 550 Sheets paper tray
|
|
Output Tray Capacity
|
550 Sheets
|
|
Maximum paper input
|
5,350
|
|

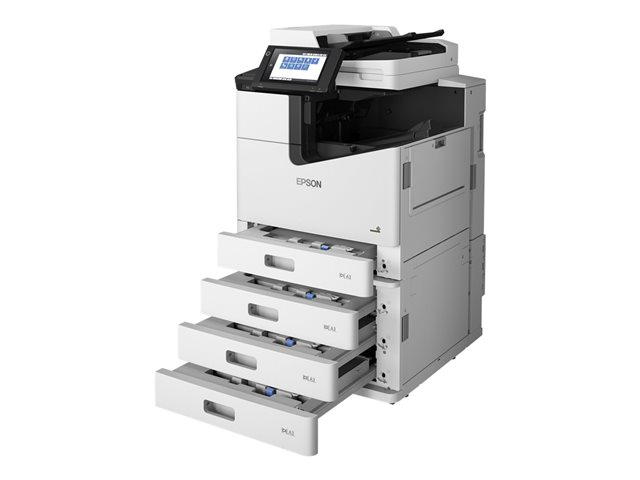

Number of paper trays
|
4
|
|
Paper Feed
|
|
Paper Input Name
|
MPT
C1
C2-C4
LCT
Duplex
|
|
Paper Formats
|
A3+, A3, A4, A5, A6, B4, B5, B6, C4 (Envelope), C5 (Envelope), C6 (Envelope), DL (Envelope), Letter, 20 x 25 cm, HLT, User defined, SRA3
A3, A4, A5, B4, B5, Letter, HLT, Executive
A3, A4, A5, B4, B5, Letter, HLT
A4, Letter
|
|
Custom sizes
|
Min 55x 330 mm to Max 127x 1,200 mm
Min 140x 297 mm to Max 182x 432 mm
|
|
Compatible paper weight
|
60 g/m² - 350 g/m²
60 g/m² - 160 g/m²
|
|
Paper Capacity 1
|
150 80gsm
550 80gsm
3,000 80gsm
|
|
Media type
|
Plain Paper, Recycled Paper, Colour Paper, Letterhead
|
|
General
|
|
Energy Use
|
170 Watt (standalone copying, ISO/IEC 24712 pattern), 1.1 Watt (sleep mode), 76 Watt (Ready), 0.1 Watt (Power off), TEC 0.4 kWh/week
|
|
Supply Voltage
|
AC 100 V - 240 V, 50 Hz - 60 Hz
|
|
Product dimensions
|
674 x 757 x 1,243 mm (Width x Depth x Height)
|
|
Product weight
|
177.1 kg
|
|
Compatible Operating Systems
|
Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X 10.11.x, Mac OS X 10.12.x, Mac OS X 10.13.x, Mac OS X 10.6.8, Windows 10 (32/64 bit), Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows 8.1 (32/64 bit), Windows Server 2003 R2 x64, Windows Server 2003 SP2, Windows Server 2008 R2, Windows Server 2016, Windows Vista (32/64 bit), Windows XP SP3, Windows XP SP3 or later (32-bit), Windows Server 2003 SP2 or later, XP Professional x64 Edition SP2
|
|
Sound Power
|
Operation: 7.5 B (A)
|
|
Noise
|
Operation: 60 dB (A)
|
|
Power supply
|
220V, 240V
|
|
What's in the box
|
Information sheet, Power cable, User guide
|
|
Additional Features
|
|
Features
|

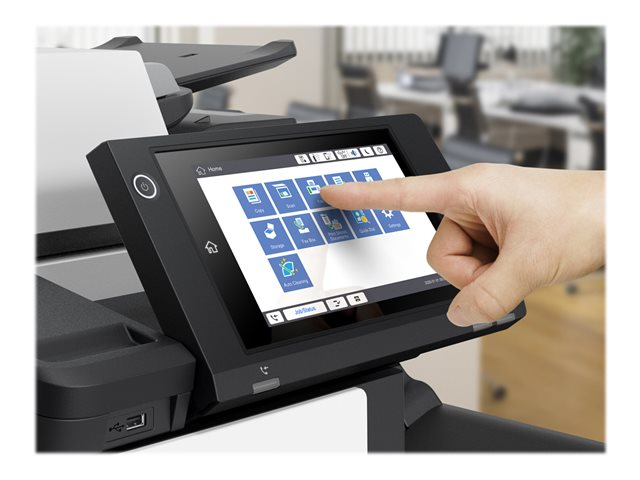

Touchscreen
|
|
Panel
|
Type: Color, Touchscreen, Diagonal: 22.7 cm
|
|
Media Handling
|
Duplex (A4/A3, plain paper)
|
|
Security Functions
|
Limit access function with Epson Web Config, Secure confidential printing with PIN code release, LDAP Address Book, IPsec, IEEE802.1x, SSL (Server authentication), Panel Admin Mode
|
|
HDD
|
HDD, Encrypted, 320GB
|
|
Other Features
|
|
Emulations
|
PCL5c, PCL6, PostScript 3, PDF 1.7, ESC/P, ESC/P-R, PCL5e, ESC/Page, ESC/Page-Colour
|
