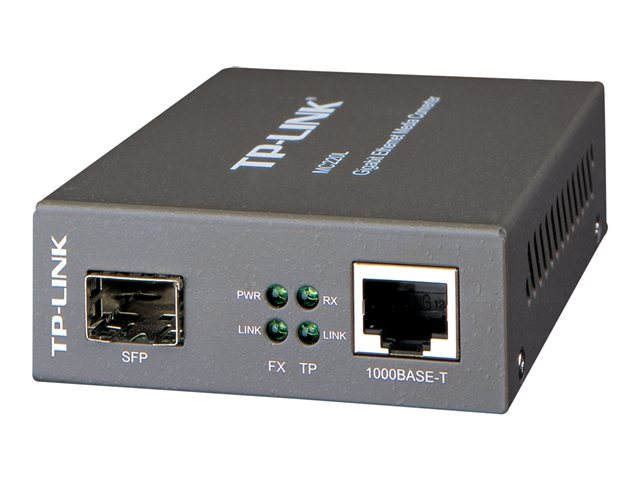

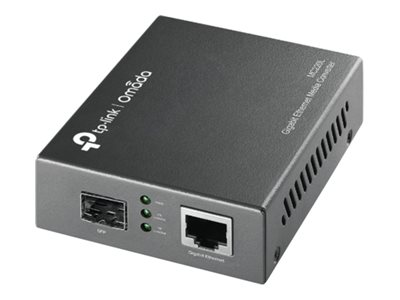

TP-Link MC220L - Fibre media converter - Right-angle

TP-Link MC220L - Fibre media converter

1GbE - 1000Base-LX, 1000Base-SX, 1000Base-LH - RJ-45 / SFP (mini-GBIC) - up to 10 km - 850 nm / 1310 nm - for P/N: TL-MC1400

100+ in stock

Manufacturer TP-LINK

Part number MC220L

£13.99 Excl VAT

Information
- Works at 1000Mbps in full-duplex mode for both TX port and FX port
- Supports auto MID/MID-X for TX port
- Link fault pass through and far end fault minimize the loss caused by link failure timely
- Provides switch configuration of force /auto transfer mode for FX port
- FX port support hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply
- Complies with IEEE 802.3ab and IEEE 802.3z
The MC220L is a media converter designed to convert 1000Base-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode. Other features of this module include the ability to be used as a standalone device (no chassis required) or with TP-Link's 19"system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
