Draytek Vigor 2962 - Router

4-port switch - GigE, 2.5 GigE - WAN ports: 2 - rack-mountable
Out of stock
Manufacturer Draytek
Part number V2962-K
  • £324.99 Excl VAT
  • Information
    the interface of Vigor2962

    High Performance 2.5G Router

    Vigor2962 is a high performance and dynamic firewall router with configurable WAN/LAN ports. With the selection of 2.5GbE port, 1GbE Fiber port, and 2 of 1GbE ports, users can set 2 of the ports as WAN for load balancing/failover purpose and enjoy overall 2.2Gbps NAT throughput.

    Up to 2 WANs
    including 2.5G Ethernet and SFP

    200 VPN
    IPsec VPN throughput up to 800 Mbps

    50 SSL VPN
    Throughput up to 500 Mbps

    2.2 Gbps
    Max. NAT Throughput

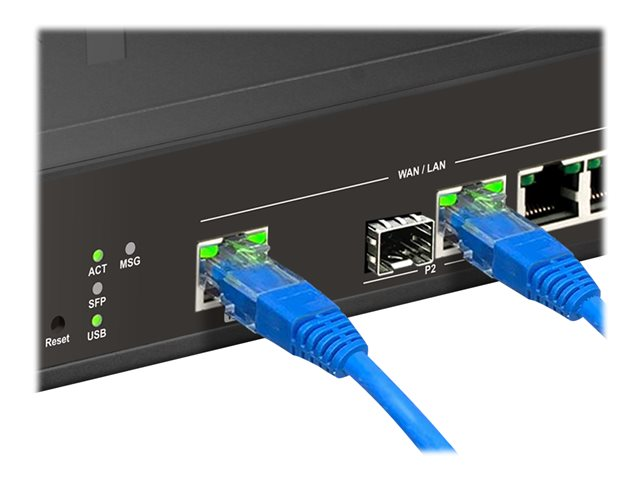

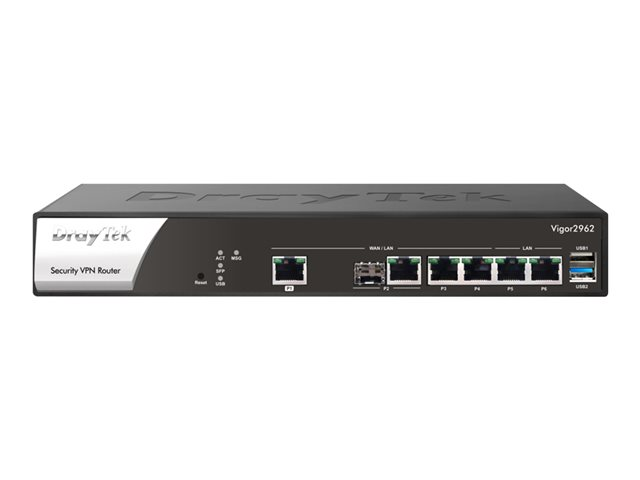

    port interface of Vigor2962

    1Power Input

    2Power On/Off Switch

    3Reset Button

    4LED Indicator

    51x 2.5G RJ-45*

    61x GbE/SFP Combo*

    72x GbE RJ-45*

    8Fixed LAN Port: 2x GbE RJ-45

    91x USB 2.0 & 1x USB 3.0

    Key Features

    load balancing router
    Load Balancing

    Maximize throughput and reliability by using multiple Internet connections. Learn more

    VPN router
    VPN (Virtual Private Network)

    Build a secure and private tunnel from the LAN of Vigor2962 to the remote offices and teleworkers over the Internet. Learn more

    SSL VPN router
    SSL VPN

    The VPN works through firewalls providing secure remote access to any network environment. Learn more

    VPN matcher
    VPN Matcher

    Helps routers behind NAT to find each other and establish a LAN-to-LAN VPN. Learn more

    PPP over Ethernet
    PPPoE Server

    Use Point-to-Point connection on LAN to keep track of individual user's traffic. Setup Guide

    captive portal
    Hotspot Web Portal

    Market your business and communicate with the guests while offering hospitality WLAN. Learn more

    speed control
    Bandwidth Management

    Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.

    Firewall & Content Filter

    Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.

    dynamic DNS service
    DrayDDNS

    The free DDNS service for you to access the router by a fixed hostname of your choice. Learn more

    wireless management
    Central AP Management

    Use the Vigor2962 router as a wireless controller to maintain and monitor the VigorAPs. Learn more

    switch management
    Central Switch Management

    Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more

    Flexible WAN/LAN Ports

    Vigor2962 features four configurable WAN/LAN ports, including one 2.5GbE port, one SFP/GbE combo port, and two GbE ports. Two of the four ports can be used as WAN port concurrently. Dual WAN for load balancing/failover improves Internet resilience of your business.

    Switchable Ports of Vigor2962

    Hotspot Web Portal

    Market your business while offering free WLAN

    WLAN Marketing

    Redirect the hotspot guests to the company homepage, online surveys, or display promotion message.

    Grow Your Email List

    Require the guest to leave contact info or social media accounts before they can use the Internet service.

    Various Authentication Type

    A variety of login methods are supported to meet your business need, including Facebook Login, Google Login, SMS PIN, Voucher PIN, and RADIUS.

    3rd-Party Service Compliant

    Supports external captive portal authentication. You can keep using the WLAN marketing solution you like.

    Quota Management

    Bandwidth management is integrated into Hotspot to control the bandwidth and session usage of the Hotspot guests.

    DrayTek Hotspot

    All-in-One Management

    A management platform for Vigor devices on the LAN side and offer simple and massive deployment.

    Vigor2962 LAN Management
    Automatic Device Discovery

    Automatically discover LAN subnets and add detected VigorSwitch/AP into managed list.

    Provisioning

    Most-frequent used settings can be pre-defined on the Vigor Router, and provision to the managed VigorSwitch/AP.

    Monitoring

    Vigor Router provides a centralized view of managing devices, you may always check if the managed Vigor Switch/AP is online.

    System Maintenance

    You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the Vigor Router. There’s no need to log in to each device’s management page.

    Interface
    WAN/LAN Switchable Port 1x 2.5G Ethernet, RJ-45
    1x GbE/SFP Combo
    2x GbE, RJ-45

    *up to 2 simultaneous WANs

    Fixed LAN Port 2x GbE, RJ-45
    USB Port 1x USB 2.0 + 1x USB 3.0 for storage* (since f/w v3.9.4)
    Performance
    NAT Throughput w/ Hardware Acceleration 2.2 Gbps
    IPsec VPN Performance 800 Mbps (AES 256 bits)
    SSL VPN Performance 500 Mbps
    NAT Sessions 300,000*(since f/w v3.9.4, 150,000 with f/w v3.9.3)
    Max. Concurrent VPN Tunnels 200
    Max. Concurrent OpenVPN + SSL VPN 50
    Internet Connection
    IPv4 PPPoE, DHCP, Static IP
    IPv6 PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
    802.1p/q Multi-VLAN Tagging
    Multi-VLAN/PVC
    Load Balancing IP-based, Session-based
    WAN Active on Demand Link Failure, Traffic Threshold
    Connection Detection ARP, Ping, Strict ARP
    Dynamic DNS
    DrayDDNS
    LAN Management
    VLAN 802.1q Tag-based, Port-based
    Max. Number of VLAN 20
    Number of LAN Subnet 20
    DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
    LAN IP Alias
    Wired 802.1x Authentication
    Port Mirroring
    Local DNS Server
    Conditional DNS Forwarding
    Hotspot Web Portal
    Hotspot Authentication Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server
    Networking
    Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, OSPF, BGP
    Policy-based Routing Protocol, IP Address, Port, Domain, Country
    High Availability
    DNS Security (DNSSEC)
    Multicast IGMP Proxy*, Bonjour(since f/w v3.9.4)
    Local RADIUS server
    VPN
    LAN-to-LAN
    Teleworker-to-LAN
    Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN(Host to LAN)
    User Authentication Local, RADIUS, LDAP, TACACS+, mOTP
    IKE Authentication Pre-Shared Key, X.509
    IPsec Authentication SHA-1, SHA-256, MD5
    Encryption MPPE, DES, 3DES, AES
    VPN Trunk (Redundancy) Load Balancing, Failover
    Single-Armed VPN
    NAT-Traversal (NAT-T)
    DrayTek VPN Matcher
    Firewall & Content Filtering
    NAT Port Redirection, Open Ports, Port Triggering, DMZ Host
    ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
    VPN Pass-Through PPTP, L2TP, IPsec
    IP-based Firewall Policy
    Content Filtering Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
    DoS Attack Defense
    Spoofing Defense
    Bandwidth Management
    IP-based Bandwidth Limit
    IP-based Session Limit
    QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Service Type
    VoIP Prioritization
    Management
    Local Service HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
    Config File Export & Import
    Firmware Upgrade TFTP, HTTP, TR-069
    2-Level Administration Privilege
    Access Control Access List, Brute Force Protection
    Notification Alert SMS, E-mail
    SNMP v1, v2c, v3
    Syslog
    Central AP Management 50 VigorAP
    Central Switch Management 30 VigorSwitch
    Physical
    Rack Mountable Mouting Kit Included
    Power Supply AC 100-240V @ 1A
    Max. Power Consumption 15 watts
    Dimension 273 mm x 171 mm x 45 mm
    Weight 1.3 kg
    Operating Temperature 0 to 45°C
    Storage Temperature -25 to 70°C
    Operating Humidity (non-condensing) 10 to 90%
